Description

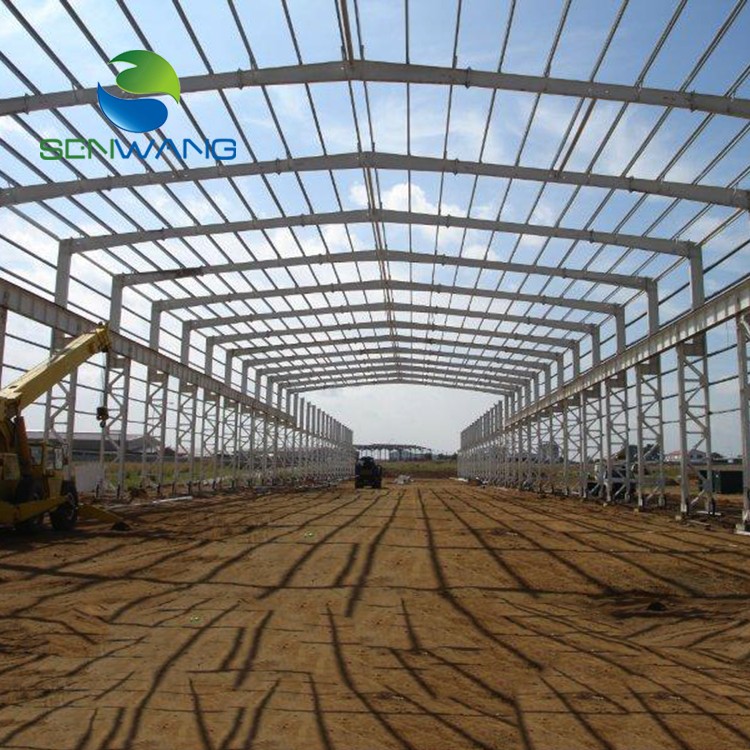

Warehouse Building Prefabricated Steel Structure

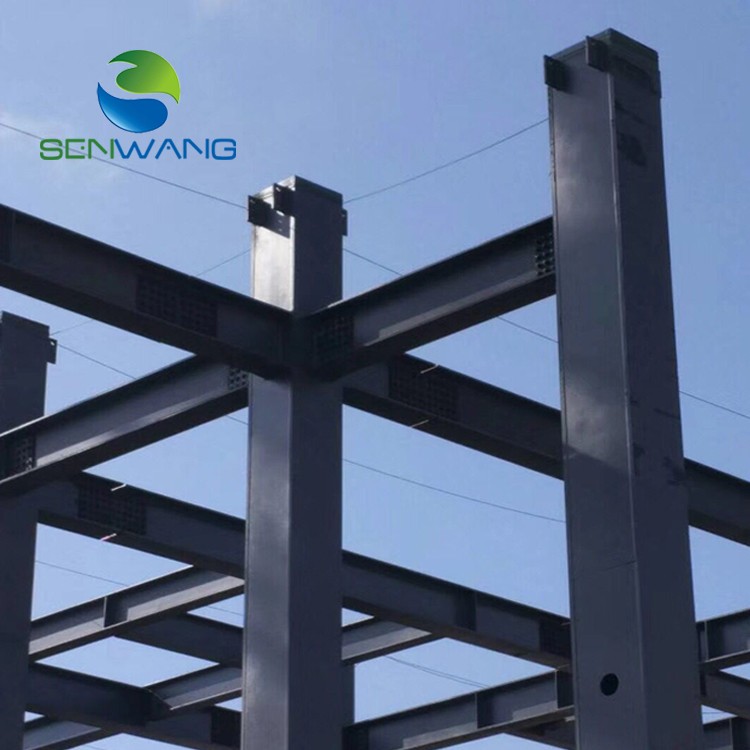

Senwang steel structure double-layer steel structure workshops have more space for use, can effectively increase the use of the area, use space rationally, save enterprise expenses, and improve company efficiency. They are applicable to textile, clothing, home appliances, food, papermaking, and other light industrial sectors. The biggest difference between a double-storey steel structure factory and a single-story steel structure factory building is that the double-storey factory building has one more floor plate. This floor plate makes the steel column bear more pressure, so the overall bearing capacity of the steel column must be considered when designing.
Parameter
Product parameters
Material | Specification |
Length | With customer's requirement |
Width | Single span, double-span, Multi-span |
Height | With customer's requirement |
Column | Q235, Q345 welded H section steel |
Beam | Q235, Q345 welded H section steel |
Purlin | Q235 C channel or Z channel |
Knee brace | Q235 angle steel |
Vertical and transversal support | Q235 angle steel, round bar or steel pipe |
Tie bar | Q235 steel pipe |
Brace | Q235 round bar |
Cladding system | EPS, PU, Fiber Glass and Rock Wool sandwich panels or corrugated steel sheet with fiber glass wool insulation. available in Diferentcolors&gauges |
Partition wall | sandwich panels (EPS, PU, Fiber glass,Rock Wool etc.) available in Different colors&gauges |
Door | sandwich panel sliding door or roller door |
Gutter | stainless steel or color steel sheet |
Rainspout: | PVC |
Live load on roof | In 120kg/Sqm (Color steel panel surrounded) |
Wind resistance grade | 12 grades |
Earthquake-resistance | 8 grades |
Structure usage | Up to 50 years |
Finishing options | vast array of colors and textures available |
Paint Options | Alkyd paiting, two primary painting, two finish painting(gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized. |
Advantages of Senwang Steel structure Warehouse
1.Most of the materials used in the steel structure warehouse are steel. Compared with the traditional concrete, the strength of the steel is higher and the weight of the steel is lighter. Under the same stress, the section of the steel structure member is smaller and the weight of the steel structure member is lighter. Easy to install and transport
2.The toughness and plasticity of steel is good, and the material is more uniform and reliable. It is suitable for bearing impact and dynamic load, and has good seismic performance.
3.Steel structure in the process of reproduction and installation of a high degree of mechanization, steel
structure components are easy to manufacture in the factory, the site assembly. The finished component manufactured mechanically in the factory has high precision, high production efficiency, fast assembling speed and short construction period.
