Description
Applications of steel structure building:

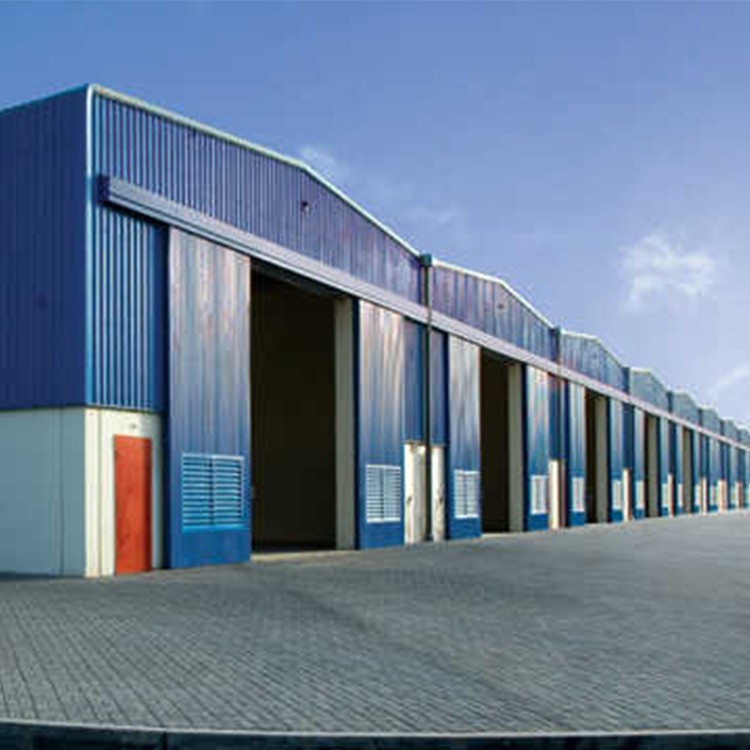

Steel structure workshop/warehouse/shed, Exhibition Hall, Office buildings, Garage, Malty-story building, Hanger, Agricultural storage, Logistic centers, and all kinds of steel materials., etc
The steel frame is used more and more widely in workshops and other industrial and civil buildings. For the mainframe, there are single-span and multi-span gantry light frame structures and reinforced concrete structures, compared with its unique advantages.
The steel structure is sturdy, environmentally friendly, insulated, waterproof and soundproof, and is very popular.
Advantages :
# Environment friendly: All the materials of steel building is made of steel, which can be reused many times.
# Good appearance: warehouse with color steel sheet wall panel and roof panel is beautiful and tidiness.
# Quality: steel structure warehouses with steel structure frame and colorful steel sheet panel is very fastness.
# Good drainage system with cold bend steel sheet gutter and PVC downpipe
# Connection: All the steel materials were connected with high strength bolts, shearing bolts, bracket bolts, etc is easy to install and dismantle
Parameter
Item Name | Materials Characteristics | Material Grade | Surface Treatment |
Steel Column | H shape, Box, Steel Pipe, Hot rolled sheet | Q235B,Q345B | Paint or Hot dip Galvanized |
Steel beam | H shape, Box, Steel Pipe, Hot rolled sheet | Q235B,Q345B | Paint or Hot dip Galvanized |
Steel Bracing | Steel Rod, Steel Pipe, Angle Steel | Q235B,Q345B | Paint or Hot dip Galvanized |
Steel Purlin | C or Z purlins(Thickness1.8mm~3.0mm) | Q235B,Q345B | Hot dip Galvanized |
External Wall panels, Roof panels | Single colorful corrugate steel sheet, sandwich panels with EPS, Rock wool, PU. | Galvanized Steel+ Painting | Alu-zin 150g,Fluorocarbon pain |
Steel buildings Door | Sliding or Rolling door | Steel or Aluminum sheet | Paint or Hot dip galvanized |
Steel buildings Windows | Aluminum alloy-Glass, Aluminum alloy-shutter | T=1.0-2.0mm | Alloy |
Skylight panels | FRP T=1.5mm-1.8mm | Coefficient of thermal expansion:2.2x10-5/cm | Light Transmittance 85% |
Ventilator | Turbine ventilator on a ridge | Steel, Stainless steel ,PC | Paint or Hot dip Galvanized |
Gutter | Galvanized steel plate, Stainless steel plate | T=2.0mm | Hot dip galvanized |
Downpipe | PVC pipe, color steel-pipe Y=0.5mm | Dia110mm | paint |
Height Bolt | Ordinary ,High strength | 10.9S,4.8S | Hot dip galvanized, Steel |
Ground bolts | Steel RodM24,M27,M30,M33,M39,M42 | 10.9S | Steel |
